Binoculars

Compact Binoculars

  • Optical glass lenses,fully coated for high resolution,crisp and sharp image.
  • Collapsible eyecap for the convenience of glass wearers.
  • Unique, streamlined structure, handle comfortable,
  • Ultra compact,light weighted, easy to carry.
  • The prism with high light transmittance always offer a bright and natural image.
  • Red coated series, ruby red coat can cut down on ultra violet light and infrared light, and protect the eyes form harms.
  • Rubber armoured series,the water resistant, shock proof rubber guarantee the all weather use.

　

Specification

Style Mag. Objective Diameter Field of View Exit Pupil Focusing Range Size
7X22UCFC 7X 22mm 7.4° 3.1mm 3m-∞ 118X50X120
8X22UCF 8X 22mm 7.2° 2.7mm 3m-∞ 110X50X120
10X22UCF 10X 22mm 5.5° 2.2mm 3m-∞ 118X50X120

Rubber Aromoured Binocular

  • Optical glass lenses,fully coated for high resolution,crisp and sharp image.
  • collapsible eyecap for the convenience of glass wearers.
  • Unique, streamlined structure, handle comfortable,
  • Ultra compact,light weighted, easy to carry.
  • The prism with high light transmittance always offera bright and natural image.
  • Red coated series, ruby red coat can cut down on ultra violet light and infrared light, and protect the eyes form harms.

Specifications

Style Mag. Objective diameter Field of View Exit Pupil Focusting Range Size
7X25ZCF 7 25mm 6.5° 3.6mm 4m-∞ 103X52X158
8X25ZCF 8 25mm 6.3° 3.1mm 4m-∞ 103X52X158
10X25ZCF 10 25mm 6.0° 2.5mm 4m-∞ 103X52X158

Longeye-relief series Binocular

  • Optical glass lenses,fully coated for high resolution,crisp and sharp image.
  • collapsible eyecap for the convenience of glass wearers.
  • Unique, streamlined structure, handle comfortable,
  • Ultra compact,light weighted, easy to carry.
  • The prism with high light transmittance always offera bright and natural image.
  • Red coated series, ruby red coat can cut down on ultra violet light and infrared light, and protect the eyes form harms.

Specifications

Style Mag. Objective diameter Field of View Exit Pupil Focusting Range Size
7X25ZCF 7 25mm 6.5° 3.6mm 4m-∞ 103X52X158
8X25ZCF 8 25mm 6.3° 3.1mm 4m-∞ 103X52X158
10X25ZCF 10 25mm 6.0° 2.5mm 4m-∞ 103X52X158

Connect me Return home

Astronomic telescope

Refrective Telescope Style Tw-52560

  • Objective:700mm
  • Entrance pupil Diameter:60mm
  • Resolution:4.4"
  • Eyepiece:12.5mm, 4.0mm,20.0mm,25.0mm
  • Magnification:56X,175X
  • Field of View:30',12.5'
  • Finder Scope:5X24mm
  • Barlow:3X
  • Erecting:1.5X
  • Tripod:Wooden or Aluminum
  • Dimension:79X55X38mm

Astronomic telescope refrective Style Tw45060

  • Objective:900mm
  • Entrance pupil Diameter:60mm
  • Resolution:4.5"
  • Eyepiece:12.5mm, 4.0mm,20.0mm,25.0mm
  • Magnification:36X,72X,225X
  • Field of View:70',25',10'
  • Finder Scope:5X24mm
  • Barlow:2X
  • Erecting:1.5X
  • Tripod:Wooden or Aluminum
  • Dimension:70X52X27mm

Style Ret-45 300 POWER ASTRONOMIC REFLECTING TELESCOPE

  • 41/2" F=900MM Reflective mirror,Rack and pinion focusing, White smooth finnished body.
  • Eyepiece:H6mm(150X) &H20mm(45X).
  • Accessories:Moon filter, 2XBarlow lens,
  • 6X30mm Finderscope with twin ring bracket, Accessory Tray, Balance weight & 2 Pcs, Flexible cable controls.
  • Equotorial mopunt equipped with 2 setting cirles and clock drive affachment, 2 section hardwood triid,Packd in carton box with styrofoam lining.

Style Ct-50 167 POWER ASTRONOMIC REFLECTING TELESCOPE

  • 41/2" F=1000MM Reflective mirror,Rack and pinion focusing,SRL type 5 power scope equipped, Yellow smooth finnished body.
  • Eyepiece:H6mm(167X) &H20mm(50X).
  • Accessories:Moon filter, Accessory tray & camere adaptor.2 section folding wood tripod,
  • twin ring bracket, Accessory Tray, Balance weight & 2 Pcs, Flexible cable controls.
  • Equotorial mopunt equipped with 2 setting cirles and clock drive affachment, 2 section hardwood triid,Packd in carton box with styrofoam bed.

Style Ret-45 300 POWER ASTRONOMIC REFLECTING TELESCOPE

  • 41/2" F=1000mm Reflective mirror,Rack and pinion focusing, white smooth finnished body.
  • Eyepiece:H6mm(150X) &H20mm(45X).
  • Accessories:Moon filter, 2X30 barlow lens 6X30mm finderscope with twin ring bracket, Accessory Tray, Balance weight & 2 Pcs, Flexible cable controls.
  • Equotorial mopunt equipped with 2 setting cirles and clock drive affachment, 2 section aluminium tripod.

Connect me Return home

Sporting Telescope

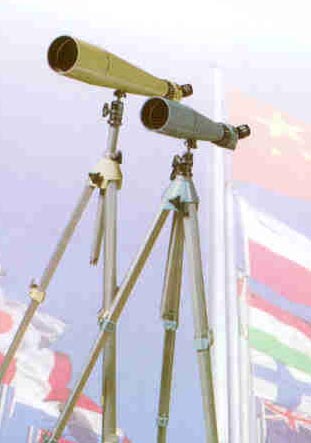

Style dgj

  • The series of DGJ sporting scopes are designed to meke detailed observation in firing prictice competitions with sharp image, high resolution field,stable beautiful apperance, small size and light weight.
  • Magnification:20x,30x,40x,60x
  • Objective:33mm,50mm,60mm,70mm
  • Diameter of exit Pupil: 1.64mm,1.5mm.1.17mm

Connect me Return home

Pocket-sized Telescope

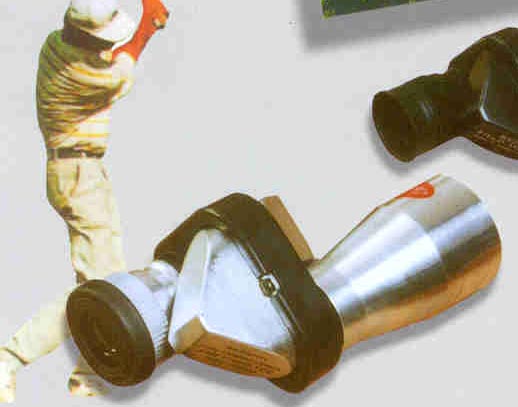

Style Sw820

  • Magnification: 8x
  • Field of View:52°7'
  • Diameter of Exit Pupil:2.37mm
  • Distance of Exit Pupil:6.3mm
  • Resolution:10"
  • Adjustment of dioptor:10~-5
  • Dimension:74x48x33mm
  • Net weight:65g

Connect me Return home

Microscope

Junior Biological Microscope

Features:
Fully Coated Optical System,Mechanical Tube Length 160mm
35mm Achromatic Objectives,Parfocal,
The Size Of Stage 110x120mm
The Moving Range Of Mechanical Stage 60x30mm

Junior Biological Microscope Style Xsp-114a

Monocular Head: Straight
Eyepiece:WF10X
Objective: Achromatic Objective(45mm)4x,10x,40x(S) Stage: Plain Stage With Slide Clips(120x115m)
Condenser: Single Lens With Disc Diaphragm.
Mirror: Plane-Concave Mirror
Package: Each set In Styrofoam & Box, 4 Boxes To 1 Carton For Safety Optional Accessories: Achromatic Objective 60x , Achromatic Objective 100x(S, Oil) , Eyepiece P16x(Wf16x) ,Attachable Mechanical Stage, Attachable Illuminator

Junior Biological Microscope Style XSP-114B

Monocular Head: Inclined At 45,360 Rotatable.
Eyepiece:WF10X
Objective: Achromatic Objective(45mm)4x,10x40x(S) Stage: Plain Stage With Slide Clips(120x115m)
Condenser: Condenser With Iris Diaphragm & Filter
Mirror: Plane-Concave Mirror
Package Each set In Styrofoam & Box, 4 Boxes To 1 Carton For Safety
Optional Accessories:Achromatic Objective 60x, Achromatic Objective 100x(S,Oil), Eyepiece P16x(Wf16x), Attachable Mechanical Stage,Attachable Illuminator

Junior Biological Microscope Style XSP-102m

Monocular Head:Monocular Head
Eyepiece:WF10X
Objective:Achromatic Objective(45mm)4x,10x40x(S)
Stage: Plain Stage With Slide Clips(120x110m)
Focusing:Separate Coarse & Fine Adjustment With Tension Control
Condenser:Single Lens With Disc Diaphragm.
Illumination:Pkan-Cibcave Mirrir.
Package Eachset In Styrofoam & Box, 4 Boses To 1 Carton For Safety

Junior Biological Microscope Style XSP-102a

Monocular Head:Monocular Head
Eyepiece:WF10X
Objective:Achromatic Objective(45mm)4x,10x,40x(S) Stage: Plain Stage With Slide Clips(120x110m)
Focusing:Separate Coarse & Fine Adjustment With Tension Control
Condenser:Single Lens With Disc Diaphragm.
Illumination:Incandescent Lamp,220v/15w Or 110v/15w. Package Eachset In Styrofoam & Box, 4 Boses To 1 Carton For Safety

Junior Biological Microscope Style XSP-102b

Monocular Head:Monocular Head
Eyepiece:WF10X
Objective:Achromatic Objective(45mm)4x,10x,40x(S),100x(S,oil).
Stage:With Attachable Mechanical Stage, Moving Range 60x30mm
Focusing:Separate Coarse & Fine Adjustment With Tension Control
Condenser:Abbe Na1.25 Condenser With Iris Diaphragm & Filter,Spiraladjustment For Condenser
Illumination:Incandescent Lamp,220v/15w,110v/15w
Package: Eachset In Styrofoam & Box, 4 Boses To 1 Carton For Safety

Junior Biological Microscope Style Xsp-105a

Eyepiece: Eyepiece H5x,H10x, H12.5x
Objective: Achromatic Objective 10x,40x(S)
Stage:Plain Stage With Slide Clips
Condenser & Diaphragm:Disc Diaphragm
Mirror:Plane-convace Mirror
Package:Each Set In Styrofoam & Wooden Case To Carton For Safety Optional Accessories:Achromatin Objective 4x,60x(S)
Attachable Mechanical Stage, Attachable Illuminator

Junior Biological Microscope Style Xsp-105B

Eyepiece: Eyepiece H5x,H10x, H16x
Objective: Achromatic Objective 10x,40x(S)
Stage:Plain Stage With Slide Clips
Condenser & Diaphragm:Iris Aphragm
Mirror: Plan-concave Mirror
Package:Each Set In Styrofoam & Wooden Case To Carton For Safety
Optional Accessories:Achromatin Objective 4x,60x(S)
Attachable Mechanical Stage
Attachable Illuminator

Junior Biological Microscope Style Xsp-104

Eyepiece: Eyepiece H5x,H10x, H16x
Objective: Achromatic Objective 10x,40x(S),100x(S, Oil)
Stage:With Attachable Mechanical Stage
Condenser & Diaphragm:Abbe Na1.25 Condenser With Iris Diaphragn & Filter
Mirror: Plane-concave Mirror
Package:Each Set In Styrofoam & Wooden Case To Carton For Safety
Optional Accessories:Achromatin Objective 4x,60x(S)
Attachabel Illuminator

Academic Biological Microscope

Features:

Fully Coated With Opticla System, Mechanical Tube Length 160mm
45 Mm Achromatic Objectives,Parfocal
Doouble Layers Mechanical Stage: Stage Size 120x120mm, Moving Range60x30mm
Coaxial Coarse And Fime Focus Adjustment For Condenser
Built-In Illumination, Adjustable Brigthness
Power Suppply 110v/220v

Academic Biological Microscope Style Xsz-109a

Viewing Head:Monocular Head, Inclined At 30,360 Rotatable
Eyepiece:Wf10x,P16x(Wf16x)
Objective Achromatic 4x, 10x, 40x(S), 100x(S,Oil)
Stage:Double Layers Mechanical Stage
Condenser: Abbe Na1.25 Condenser With Iris Diaphragm &Filter
Illumination Plan-Concave Mirror
Package:Each Set In Styrofoam & Wooden Case To Carton For Safety

Academic Biological Microscope Style Xsz-109b

Viewing Head:Monocular Head, Inclined At 30,360 Rotatable
Eyepiece:Wf10x,P16x(Wf16x)
Objective Achromatic 4x, 10x, 40x(S), 100x(S,Oil)
Stage:Double Layers Mechanical Stage
Condenser: Abbe Na1.25 Condenser With Iris Diaphragm &Filter
Illumination: Plan-Concave Mirror
Built-In Illumination,Halogen Lamp, 5v/15w
Package:Each Set In Styrofoam & Wooden Case To Carton For Safety

Academic Biological Microscope Style Xsz-209

Viewing Head:Compensation Free Bunocular Head, Inclined At 30,360 Rotatable
Eyepiece:Wf10x,P16x(Wf16x)
Objective Achromatic 4x, 10x, 40x(S), 100x(S,Oil)
Stage:Double Layers Mechanical Stage
Condenser: Abbe Na1.25 Condenser With Iris Diaphragm &Filter
Illumination: Plan-Concave Mirror
Built-In Illumination,Halogen Lamp, 5v/15w
Package:Each Set In Styrofoam & Wooden Case To Carton For Safety

Academic Biological Microscope Style Xsz-131

Viewing Head:Monocular Head, Inclined At 30,360 Rotatable
Eyepiece:Wf10x,P16x(Wf16x)
Objective:Achromatic 4x, 10x, 40x(S), 100x(S,Oil)
Stage:Double Layers Mechanical Stage 120x120mm
Moving Range: 60x30mm
Focusing:Coaxial Coarse & Fine Focus Adjustment
Condenser: Abbe Na1.25 Condenser With Iris Diaphragm &Filter, Rack & Pinion Adjstment
Illumination: Plan-Concave Mirror
Built-In Illumination,Halogen Lamp, 5v/15w
Package:Each Set In Styrofoam & Wooden Case To Carton For Safety

Academic Biological Microscope Style Xsz-231

Viewing Head:Binocular Head, Inclined At 45,360 Rotatable
Eyepiece:Wf10x,P16x(Wf16x)
Objective:Achromatic 4x, 10x, 40x(S), 100x(S,Oil)
Stage:Double Layers Mechanical Stage 120x120mm
Moving Range 60x30mm
Focusing:Coaxial Coarse & Fine Focus Adjustment
Condenser: Abbe Na1.25 Condenser With Iris Diaphragm &Filter, Rack & Pinion Adjstment
Illumination: Plan-Concave Mirror
Built-In Illumination,Halogen Lamp, 5v/15w
Package:Each Set In Styrofoam & Wooden Case To Carton For Safety

Academic Biological Microscope Style Xsz-232

Viewing Head:Binocular Head, Inclined At 45,360 Rotatable
Eyepiece:Wf10x,P16x(Wf16x)
Objective: Achromatic 4x, 10x, 40x(S), 100x(S,Oil)
Stage:Single Layer Mechanical Stage 130x120mm
Moving Range 74x36mm
Focusing:Coaxial Coarse & Fine Focus Adjustment
Condenser: Abbe Na1.25 Condenser With Iris Diaphragm &Filter, Rack & Pinion Adjstment
Illumination: Plan-Concave Mirror
Built-In Illumination,Halogen Lamp, 5v/15w
Package:Each Set In Styrofoam & Wooden Case To Carton For Safety

Academic Biological Microscope Style Xsp-126m

Viewing Head:Monocular Head,Inclined At 30,360 Rotatable
Eyepiece Wf10x
Objective:Achromatic 4x,10x 40x(S)
Stage:Plainstage With Slide Clips,Stage Size 120x130mm
Focusing:Coaxial Coarse &Fine Focus Adjustment
Illumination:Plan-Concave Mirror
Package:Each set In Styrofoam & Wooden Case To Carton For Safety

Academic Biological Microscope Style Xsp-126a

Viewing Head:Monocular Head,Inclined At 30,360 Rotatable
Eyepiece Wf10x
Objective:Achromatic 4x,10x 40x(S)
Stage:Plainstage With Slide Clips,Stage Size 120x130mm
Focusing:Coaxial Coarse &Fine Focus Adjustment
Illumination:Plan-Concave Mirror
Package:Eachsit In Styrofoam & Wooden Case To Carton For Safety

Academic Biological Microscope Style Xsp-126b

Viewing Head:Monocular Head,Inclined At 30,360 Rotatable
Eyepiece Wf10x
Objective:Achromatic 4x,10x 40x(S)
Stage:Plainstage With Slide Clips,Stage Size 120x130mm
Focusing:Coaxial Coarse &Fine Focus Adjustment
Condenser:Abbe Na1.25 Condenser With Iris Diaphragm & Filter, Rack & Pinion Adjustment
Illumination:Plan-Concave Mirror
Package:Eachsit In Styrofoam & Wooden Case To Carton For Safety

Professional Biological Microscope
Features:
Fully Coated Optical System,Mechanical Tube Length 160mm
Sliding Or Compensation Free Binoclar Head, Interpupilary Distance 55-75mm, 360 Rotatable 45mm Achromatic Objectives, Parfocal
Single Layer Mechanical Stage: Stage Size 124x153mm, Moving Range 70x50mm
Double Layers Mechabical Stage: Stage Size 140x140mm, Moving Range 70x50mm
Coaxial Coarse And Fine Focus Adjustment: Range 30mm Division Of Fine Focus Adjustment 0.002mm
Focusing Stop To Prevent Objectives & Slides From Damaging
Rack And Pinion Adjustable Brightness
Power Supply 110v/220v,Ce Approval
A Wide Range Of Accessories To Be Equipped With This Microscope For Multi-Purpose

Professional Biological Microscope Style Xsz-107b

Binocular Head:Sliding Binocular Head Inclined At 45
Eyepiece:Wf10x,P16x(Wf16x)
Objective:Achromatic 4x,10x,40x(S),100x(S.Oil)
Stage:Single Layer Mechanical Stage
Condenser:Abbe Na 1.25 Condenser With Iris Diaphragm & Filter, Rack & Pinion Adjustment
Illumination Plan-Concave Mirror
Package: Each Set In Styrofoam & Wooden Case To Carton For Safety

Professional Biological Microscope Style Xsz-107bn

Binocular Head:Sliding Binocular Head Inclined At 45
Eyepiece:Wf10x,P16x(Wf16x)
Objective:Achromatic 4x,10x,40x(S),100x(S.Oil)
Stage:Single Layer Mechanical Stage
Condenser:Abbe Na 1.25 Condenser With Iris Diaphragm & Filter, Rack & Pinion Adjustment
Illumination: Plan-Concave Mirror Built In Illumination, Incandescent Lamp 6v/20w
Package: Each Set In Styrofoam & Wooden Case To Carton For Safety

Professional Biological Microscope Style Xsz-208

Binocular Head:Sliding Binocular Head Inclined At 45
Eyepiece:Wf10x,P16x(Wf16x)
Objective:Achromatic 4x,10x,40x(S),100x(S.Oil)
Stage:Double Layers Mechanical Stage
Condenser:Abbe Na 1.25 Condenser With Iris Diaphragm & Filter, Rack & Pinion Adjustment
Illumination Plan-Concave Mirror Built-In Illumination,Halogen Lamp 6v/20w
Package: Each Set In Styrofoam & Wooden Case To Carton For Safety

Professional Biological Microscope Style Xsz-207

Binocular Head:Compensation Free Binocular Head Inclined At 30
Eyepiece:Wf10x,P16x(Wf16x)
Objective:Achromatic 4x,10x,40x(S),100x(S.Oil)
Stage:Double Layer Mechanical Stage
Condenser:Abbe Na 1.25 Condenser With Iris Diaphragm & Filter, Rack & Pinion Adjustment
Illumination: Plan-Concave Mirror, Built-In Illumination Lamp 6v/20w
Package: Each Set In Styrofoam & Wooden Case To Carton For Safety

Professional Biological Microscope Style Xsz-106a

Viewing Head : Monocular Head Inclined At 45,360 Rotatable
Eyepiece:Wf10x,P16x(Wf16x)
Objective: Achromatic 4x, 10x,40x(S),100x(S,Oil)
Stage:Single Layer Mechanical Stage 120x153mm
Moving Range 70x50mm
Focusing:Coaxial Coarse & Fine Focus Adjustment
Condenser:Abbe Na1.25 Condenser With Iris Diaphragm & Filter Rck& Pinion Adjustment
Illumination: Plan-Concave Mirror
Package:Each Set In Styromfoam & Wooden Case To Carton For Safety

Professional Biological Microscope Style Xsz-106b

Viewing Head : Monocular Head Inclined At 45,360 Rotatable
Eyepiece:Wf10x,P16x(Wf16x)
Objective: Achromatic 4x, 10x,40x(S),100x(S,Oil)
Stage:Single Layer Mechanical Stage 120x153mm
Moving Range 70x50mm
Focusing:Coaxial Coarse & Fine Focus Adjustment
Condenser:Abbe Na1.25 Condenser With Iris Diaphragm & Filter Rck& Pinion Adjustment
Illumination: Plan-Concave Mirror,Built-In Illumination Incandescent Lamp 6v/20w,Power Supply 110v/220v
Package:Each Set In Styromfoam & Wooden Case To Carton For Safety

Professional Biological Microscope Style Xsz-106bn

Viewing Head : Monocular Head Inclined At 45,360 Rotatable
Eyepiece:Wf10x,P16x(Wf16x)
Objective: Achromatic 4x, 10x,40x(S),100x(S,Oil)
Stage:Single Layer Mechanical Stage 120x153mm
Moving Range 70x50mm
Focusing:Coaxial Coarse & Fine Focus Adjustment
Condenser:Abbe Na1.25 Condenser With Iris Diaphragm & Filter Rck& Pinion Adjustment
Illumination: Plan-Concave Mirror, Built-In Illumination, Halogen Lamp,6v/20w Power Supply 110v/220v
Package:Each Set In Styromfoam & Wooden Case To Carton For Safety

Photography/Videol Biological Microscope

Feature:
Fully Coated Optical System, Mechanical Tube Length 160mm
45mm Achromatic Obhectives Parfocal
Single Layer Mechanical Stage: Stage Size 124x153mm
Moving Range 70x50mm
Coaxial Coarse And Fine Focus Adjustment: Range 30mm
Division Fo Fine Focus Adjustment 0.002mm
Focusing Stop To Prevent Obhectives & Slides From Damaging
Rack And Pinion Adjustment For Condenser
Built-In Illumination, Adjustable Brightness
Power Supply 110v/220v,Ce Approval

Photography/Videol Biological Microscope Style Xsz-107e

Trinocular Viewing Head: Trinocular Head For Photography
Eyepiece:Wf10x,P16x(Wf16x)
Objective:Achromatic 4x, 10x, 40x(S), 100x(S,Oil)
Stage Single Layer Mechanical Stage
Condenser:Abbe Na1.25 Condenser With Iris Diaphragm & Filter
Illumination, Halogen Lamp, 6v/20w
Package: Each Set In Styrofoam & Wooden Case To Carton For Safety Optional Accessories:Photography Kit, 35mm Camera

Photography/Video Biological Microscope Style Xsz-107ccd

Trinocular Viewing Head: Trinocular Head For Video Camera("C" Mount)
Eyepiece:Wf10x,P16x(Wf16x)
Objective:Achromatic 4x, 10x, 40x(S), 100x(S,Oil)
Stage Single Layer Mechanical Stage
Condenser:Abbe Na1.25 Condenser With Iris Diaphragm & Filter
Illumination, Halogen Lamp, 6v/20w
Package: Each Set In Styrofoam & Wooden Case To Carton For Safety
Optional Accessories:1/2"Video Camera Tv Set Or Monitor

Portable Measuring Microscope Style Xc-100l Xc-100

Features:
The Portable Measuring Microscope Is Used For Measuring Or Viewing Purpose In Production Or Laboratoru, The Product Features Small Size, Light Weight, Nice Design And Easy Opetation

Total Magnification:100x
Mechnical Tube Length:160mm &125mm
Power Of Objective:10x
Power Of Eyepiece:10x
Focus Range:30mm
Field Of View Diameter In Eyepiece:17mm
Reticule Of Eyepiece:0.01 Micrometer
Diameter In The Bearing Plane:63mm
Teight Of Microscope:210mm
Mass Of Microscope:650gram

Zoom Stereomicroscope Style Ntz-1

Features: Fully Coated Optical System, Up-Right And Shart Image With High Resolution
Main Body 360 Rotatable
High Zoom Ratio 8.5:1
Focus Adjustment Range 50mm
Main Body Moving Range Against Post 125mm
The Diameter Of Post 28mm
Interpupilary Distance 55-75mm
The Diameter Of Stage Plate 86mm
Transimitted/Incident Light, 6v/15w Halogen Lamp
Power Supply 110/220v
Objectives Zoomobjective With 2x Objective
10x/20 6.5-55x 13-110x
20x/12 13-110x 26-220x

Binocular Stereo Microscope Style Ntx-1

Fully Coated Optical System, Sharp Image
Interpupilary Distance55-75mm
One Tube With Diopter Adjustment 5dio.
Illumination 12v/10w
Power Supply 110/220v Or Ce Approval
A Wide Range Of Accessories To Be Equipped
Straight/Inclined View Head or 360 Rotatable
Eyepiece:10x
Objective:2X,4X
Illumination:No light/INcident/Transmitted

Series Biological Micriscope Style Xs-2100
Features :

Optical Syste Of 160mm Mechanical Tube Length
More Comfortable Opetation With Low Position Knobs
Brighter Illumination Wider Viewing Field And Sharper Image

Compensation Free Binocular Head
More Stable Micriscope Stand
More Space For Placing The Slide With Backward Mosepiece
Lohler Illumination To Be Obtained With Attachable Field Diaphragm And Auxiliary Lens
A Wide Range Of Accessories To Be Equipped With This Microscope For Multe-Purpose
Eyepiece:Wide Field Eyepiece Wf10x, Wf16x
Compensation Free Binocular Head
Achromatic Objective 4x, 10x, 40x(S), 100x(S,Oil)
Bright Field Condenser With Iris Diaphragm And Filter
Collector

Multi-Observation Biological

Features
Xsz-204 With Dual Heads For 2 Persons Observing At The Same Time
Urlly Coated Optical System,Mechanical Tube Length 160mm
Binocualr Head Inclined At 45, Interpupilary Distance 55-75mm 360 Rotatable
Monocular Head Inclined At 45 360 Rotatable
45mm Achromatic Objectives ,Pafocal
Single Layer Mechanicalstage: Stage Size 124x153mm Moving Range 70x50mm
Coaxial Coarse And Fine Focus Adjustment: Range 30mm Division Of Fime Focus Adjustment 0.002mm
Focusing Stop To Prevent Objectives & Slides From Damaging
Rack And Pinion Adjustment For Condenser
Built-In Illumination, Adjudtable Brightness
Power Supply 110/220v, Ce Approval
A Wide Range Of Accessories To Be Wquipped With This Microscope For Multi-Purpose

Multi-Observation Biological Style Xsz-204

Viewing Head:2 Binocular Head
Eyepiece:Wf10x
Objective: Achromatic 4x, 10x, 40x(S), 100x(S,Oil)
Stage:Single Layer Mechanical Stage
Condenser:Abbe Na1.25 Condenser With Iris Diaphragn & Filter
Illumination:Built-In Illumination, Halogen Lamp 6v/20w
Package:Each Set In Styrofoam To Carton For Safety

Multi-Observation Biological Style Xsz-304

Viewing Head:2 Monocular And 1 Binocular Head
Eyepiece:Wf10x
Objective: Achromatic 4x, 10x, 40x(S), 100x(S,Oil)
Stage:Single Layer Mechanical Stage
Condenser:Abbe Na1.25 Condenser With Iris Diaphragn & Filter
Illumination:Built-In Illumination, Halogen Lamp 6v/20w
Package:Each Set Into 2 Cartons For Safety
Optional:Indicator

Multi-Observation Biological Style Xsz-510
Features:
Microscope Equipped With 5 Binocular Heads For 5 Persons Observing At The Same Time
Fully Coated Optical System, Mechanical Tuble Length 160mm
Binocular Heads Inclined At 45, Interpupilary Distance 55-75mm, 360 Rotatable
45mm Achromatic Objectives, Parfocal
Single Layer Mechanical Stage: Stage Size 124x153mm, Moving Range 70x50mm
Coaxial Coarse And Fine Focus Adjustment: Range 30mm, Division Of Fine Focus Adjustment 0.002mm
Focusing Stop To Prevent Objectives & Slides From Damaging
Rack And Pinion Adjustment For Condenser
Built-In Illumination, Adjustable Brightness
Power Supply 110/220v
A Wide Range Of Accessories To Be Equipped With This Microscoe For Multi-Purpose
Specification:

Viewing Head:5 Binocular Heads
Eyepiece:Wf10x, P16x
Objective:Achromatic 4x, 10x, 40x(S), 100x(S,Oil)
Stage Single Layer Mechanical Stage
Condenser:
Abbe Na1.25 Condenser With Iris Diaphragm & Filter, Rack & Pinion Adjustment
Indicator: Indicator With Illuminator 6v/3w
Illumination:Built-In Illumination, Halogen Lanp 24v/100w Package:Each Set In 2 Cartons For Safety

Connect me Return home

Connect us through:

Company:

ZHEJIANG ZHONGDA TECHNICAL EXPORT CO LTD.,

Address:

18/F-20/F JINMEI BUILDING JINLONG GARDEN 128 YOUSHENGGUAN LU QINGTAI ROAD HANGZHOU CHINA.

ZIP CODE:
310009

E-mail:
opticaldept@optical.faithweb.com or daniel_dhk@yahoo.com

Web Site:
http://www.ztiec.com

Telephone:
86-571-7817580

FAx
86-571-7812329

Return home

Introduction about our company

Zhejiang Zhongda Technical Export co.,ltd. was formally maned Zhejiang technical import and export co.,ltd. (short as ZTIEC),which was a provincial-level firm, founded with the approval of the Ministry of Foreign Trade and Economic Cooperation of China. ZTIEC'S total trade in 1997 were valued USD350 million ,ranking 73 among the Top 500 foreign trade enterprises in China and No.2 in Zhejiang Provice. Also it has been authorized "AAA" credit enterprises by BANK of CHINA since 1992. At present, we have established business with more than 100 countries and regions and founded several subsidiaries and offices in China and Abroad. We principally engages in exporting of the following items: Technology and Equipment, Machinery, Electrical products, Optical Instruments. We enjoy innovations, good after market services in field of exporting, We also deal in processsing with supplied materials and samples and compensatory trade.

As the Optical department of Zhejiang Zhongda Technical Export co., LTD. We mainly deal with Optical Instruments.

Connect me Return home

Copyright? Zhejiang Zhongda Technical Export Co. LTD.,
Send mail to webmaster webmaster@optical.faithweb.com with questions or comments about this web site This page was last updated on Jul. 17 1999.
